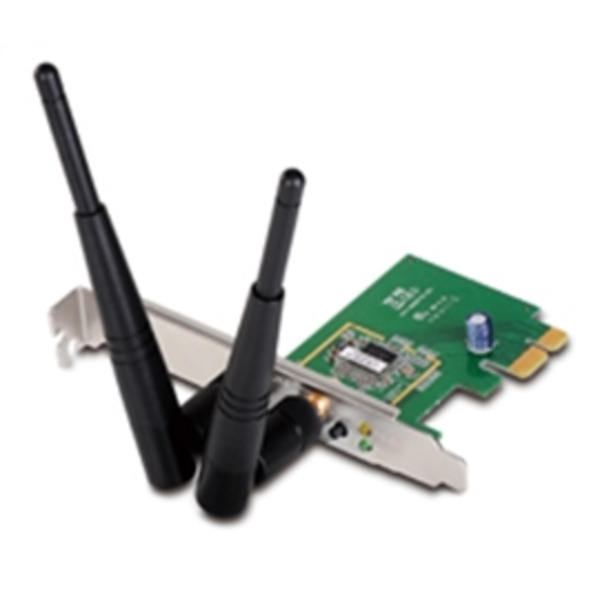

The Edimax EW-7612PIn V2 N300 Wireless PCI Express Adapter is an easy way to add Wi-Fi connectivity to your desktop computer. Built with the 802.11n standard, 2T2R MIMO technology, and two high-gain 3dBi detachable antennas, this wireless PCIe adapter allows for fast and stable wireless networking with data speeds of up to 300Mbps. It can be easily set up with the bundled EZmax multi-language setup wizard, and it comes with a low-profile bracket for installation on small computers.
Wireless 802.11n Standard (Data Rates Up to 300Mbps)
The Edimax EW-7612PIn V2 allows for increased wireless coverage and higher data transmission rates. The latest wireless technology is built into this device to broaden its wireless coverage by 5 times and to reduce dead spots within the wireless range. The EW-7612PIn V2 complies with wireless IEEE 802.11b/g/n standards and can reach data transmission rates of up to 300Mbps when connected to wireless 802.11n devices. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11b/g wireless networks.
First-Class Reliability
The EW-7612PIn V2s exceptional chipset offers increased bandwidth and more functionality than other PCI network adapters. This adapter is specifically designed to utilize the full bandwidth capacity of the PCI Express bus, thus eliminating collisions and latencies that exist with current 32-bit and 64-bit PCI bus architectures.
Interfaces
1 x PCI Express interface
1 x Link LED
1 x Tx/Rx LED
1 x Hardware WPS button
2 x RP-SMA connector
2 x High-gain 3dBi detachable antenna
Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Data Rates
11b: 1/2/5.5/11Mbps
11g:6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15 (up to 144Mbps)
11n (40MHz): MCS0-15 (up to 300Mbps)
Frequency Band
2.4000 to 2.4835GHz (Industrial Scientific Medical Band)
Output Power
11n:12dBm+/-1.5dBm
11g: 12dBm+/-1.5dBm
11b: 16dBm+/-1.5dBm
Wireless Security
64/128-bit WEP, WPA, WPA2 and IEEE 802.1x
Hardware and Software WPS configuration
Installation
Multi-language EZmax Setup Wizard
System Requirements
Windows/XP/Vista/7
Certifications
CE, FCC
Item Dimension (L”xW”xH”):
6.7 X 5.5 X 1.2
Weight:
0.4 lb
Warranty Information:
2 Years
