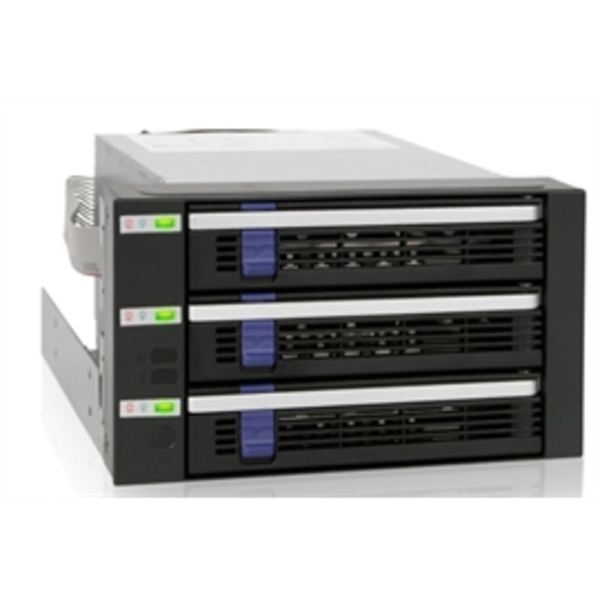

Introducing the MB153SP-B, a 3-in-2 SATA internal RAID backplane for 3.5 SATA hard drives. This is a lite version of the MB45X series by removing the monitoring features and reducing the overall cost, while keeping the same 3 year warranty and the core tray system for hot swapping and maintenance are kept for the best reliability in the market.
Slimmed Down Design
The MB153SP-B has been redesigned to be a lighter module, while maintaining the same level of quality, build, and service youd expect from an Icy Dock product. While the design has gone through some changes, the space saving design is still established. The backplane module allows up to 3 x 3.5 SATA III hard drives, while only consuming two 5.25 bays. The module has also been redesigned for the type of power connector accepted. 15 pin SATA power is used to provide better accessibility for various host systems.
Efficient Cooling
Along with being a lighter package, the cooling has been improved to provide better air flow to your hard drives. The MB153SP-B uses a full metal body that allows for the best heat dissipation possible in various types of applications. In addition, our enhanced direct air flow design allows the included cooling fan to raise its efficiency to cool down your hard drives, by closing and rerouting any side vents to route incoming air directly to the cooling fan, as well as sealing any vents around the fan for better cooling efficiency. In addition, the backplane logic PCB has larger vents in key areas to allow more air to flow into and exit the MB153SP-B, making it an ideal system to store and cool your hard drives.
Model Number :
MB153SP-B
Color :
Black
Drive Fit :
3 x 3.5 SATA 1.5 / 3 / 6 Gbit/s hard drives
Drive Bay :
2 x 5.25″ half height device bay
Host Interface :
3 x 7 pin SATA port
Power Input :
2 x 15pin SATA Power
Transfer Rate :
Up to 6Gb/sec. (depending on hard drive speed)
Insert Extract connection via :
Direct SATA hard drive connection
Structure :
Metal body w/ partial plastic
Drive Cooling :
Replaceable 80 x 80 x 25mm cooling fan
Compatible with most 80mm fans with 2pin/ 3pin connector
Metal chassis heat dispersion
Power Indicator :
Solid Green LED (Power On)
HDD Access Indicator :
Flashing Amber LED
Item Dimension (L”xW”xH”):
6.2 x 8.6 x 11.6
Weight:
3.73 lb
Warranty Information:
3 Years
