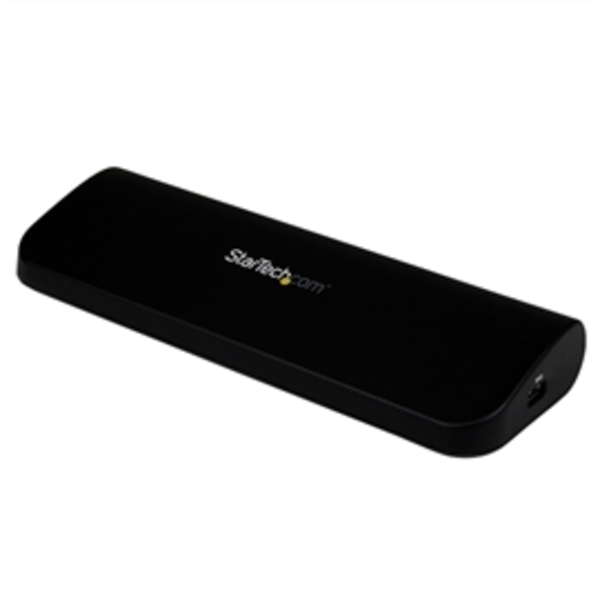

The USB3SDOCKHDV Dual Video Universal USB 3.0 Laptop Docking Station with Audio and Ethernet lets you add dual HD video outputs, as well as audio and Gigabit Ethernet connections to any notebook or Ultrabook computer through a single USB 3.0 connection.
This versatile USB 3.0 docking station features three external monitor outputs (HDMI, DVI-D and VGA) that can be used in either HDMI and DVI-D, or HDMI and VGA combinations to expand or mirror your desktop. Each video output supports HD video resolutions (2048×1156 max) and HD video playback for an ideal solution to expanding your notebooks video capability.
An all-in-one mobile solution, the universal docking station combines a USB 3.0 hub (backward compatible with USB 2.0/1.1), Gigabit Ethernet RJ45 and headphone and microphone audio connectors into a single universal port replicator, perfect for enhancing laptop connectivity for users who need to connect and manage multiple devices at home or at the office.
Hardware
Bus Type:USB 3.0
Chipset ID:DisplayLink – DL-3900
Genesys – GL3520
Realtek – RTL8211E
Industry Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0
Connector(s)
Connector Type(s):
1 – DVI-D (25 pin) Female
1 – HDMI (19 pin) Female
1 – RJ-45 Female
1 – USB 3.0 B (9 pin SuperSpeed) Female
1 – VGA (15 pin High Density D-Sub) Female
2 – 3.5 mm Mini-Jack (3 Position) Female
3 – USB 3.0 A (9 pin SuperSpeed) Female
Performance
Auto MDIX:Yes
Compatible Networks:10/100/1000 Mbps
Full Duplex Support:Yes
Maximum Analog Resolutions:2048×1152 (VGA)
Maximum Data Transfer Rate:5 Gbps (USB 3.0)
2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions:1920×1200 (DVI-D)
1920×1080 (HDMI)
Type and Rate:USB 3.0 – 5 Gbit/s
OS Compatibility
Windows 8 (32/64-bit), 7 (32/64), Vista (32/64), XP SP3 (32/64)
Windows Server 2008 R2, 2003 (32/64)
Color:
Black
Enclosure Type:
Plastic
Power
Center Tip Polarity:Positive
Input Current:0.9 A
Input Voltage:100240V
Output Current:4 A
Output Voltage:5 DC
Plug Type:B
Power Adapter Included:Yes
Special Notes / Requirements
System and Cable Requirements:
Available AC electrical outlet
HDMI (and either DVI-D or VGA if dual display is desired) enabled display device(s) e.g. monitor, projector, HTDV, etc. with cables
USB 3.0 enabled computer system with available USB 3.0 port
Included in Package
1 – Docking Station
1 – 0.9m USB 3.0 Cable
1 – Universal Power Adapter (NA/UK/EU)
1 – Installation CD
1 – Instruction Manual
Item Dimension (L”xW”xH”):
11.81 x 7.64 x 2.56
Weight:
1.68 lb
Warranty Information:
2 Year Warranty
