1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family QPI up to 9.6GT/s
2. Intel C612 chipset
3. Up to 1.5TB reg. ECC DDR4 2133MHz 24x DIMM sockets
4. 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slot
5. Quad LAN w/ Intel i350 GbE
6. 10x SATA3 (6Gbps) ports w/ Intel C612 controller RAID 0, 1, 5, 10
7. 8x SAS3 (12Gbps) ports w/ LSI 3108 controller RAID 0, 1, 5, 6, 10, 50, 60 SuperCap option support
8. Integrated IPMI 2.0 and KVM with Dedicated LAN
9. 3x USB 3.0 (2 rear, 1 Type A)

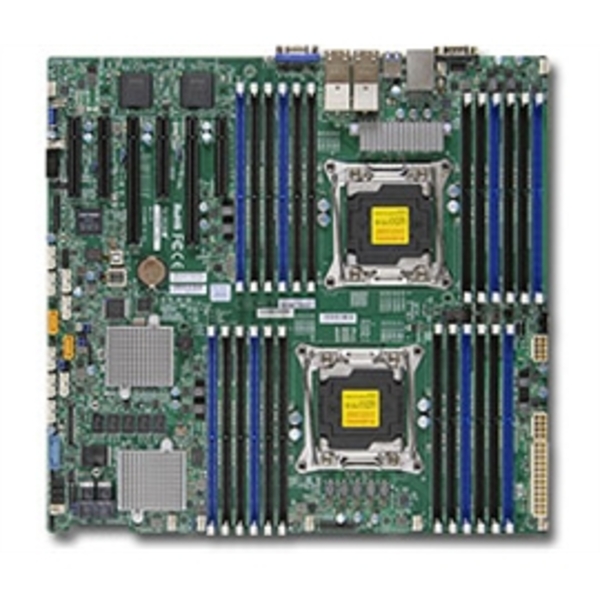

MBD-X10DRC-LN4+ -B
X10DRC-LN4+ (Bulk Pack)
Form Factor
Enhanced Extended ATX
Processor/Cache
CPU
Intel Xeon processor E5-2600 v3 family (up to 145W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s
System Memory
Memory Capacity
24x 288-pin DDR4 DIMM sockets
Up to 1.5TB ECC LRDIMM, 768GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
SAS
LSI 3108 SAS3 (12Gbps) controller
HW RAID 0, 1, 5, 6, 10, 50, 60
2GB Cache with optional SuperCap backup module
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMCNetwork Controllers
Intel i350 Quad Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC
Video resolution up to 1920×1200 at 60Hz 32BPP
Input / Output
SATA
10x SATA3 (6Gbps) ports
SAS
8x SAS3 (12Gbps) ports
SuperCap option support
LAN
4x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
3x USB 3.0 ports (2 rear + 1 Type A)
Video
1x VGA port
Serial Port / Header
2x Fast UART 16550 serial
2x COM Ports (1 rear, 1 header)
DOM
2x SuperDOM (Disk on Module) ports
TPM
1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express
2x PCI-E 3.0 x16
3x PCI-E 3.0 x8
1x PCI-E 2.0 x4 (in x8)
System BIOS
BIOS Type
128Mb SPI Flash EEPROM with UEFI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
Software
Intel Node Manager 3.0
NMI
SPM
SUM
SuperDoctor 5
Watch Dog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
5+1 Phase-switching voltage regulator
FAN
8x 4-pin fan headers (up to 8 fans)
8x fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 8x Fan Connectors
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID
Other Features
Chassis intrusion detection
Chassis intrusion header
SDDC Support
RoHS
Weight:
3 lb
Warranty Information:
1 Year
