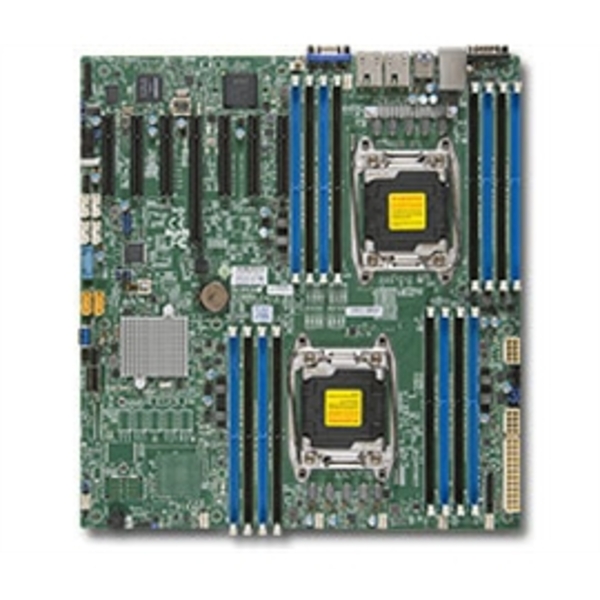

1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family QPI up to 9.6GT/s
2. Intel C612 chipset
3. Up to 1TB reg. ECC DDR4 2133MHz 16x DIMM sockets
4. 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
5. Intel X540 Dual port 10GBase-T
6. 10x SATA3 (6Gbps) ports w/ Intel C612 controller RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 5x USB 3.0 and 4x USB 2.0 ports
Form Factor
E-ATX
Processor/Cache
CPU
Intel Xeon processor E5-2600 v3 family (up to 145W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s
Note
Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
16x 288-pin DDR4 DIMM sockets
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC
Input / Output
SATA
10x SATA3 (6Gbps) ports
LAN
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port
USB
5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)
4x USB 2.0 ports (2 rear + 2 via header)
Video
1x VGA Connector
Serial Port / Header
2x Fast UART 16550 serial
2x COM Ports (1 rear, 1 header)
DOM
2x SuperDOM (Disk on Module) ports
TPM
1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express
1x PCI-E 3.0 x16
6x PCI-E 3.0 x8
System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
Software
Intel Node Manager 3.0
IPMI 2.0
SPM
SUM
SuperDoctor 5
NMI
Watch Dog
Power Configurations
ACPI / APM Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
5+1 Phase-switching voltage regulator
FAN
8x 4-pin fan headers (up to 8 fans)
8x fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 8x Fan Connectors
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID
Other Features
Chassis intrusion detection
Chassis intrusion header
SDDC Support
RoHS
Weight:
3 lb
Warranty Information:
1 Year
